Abstract

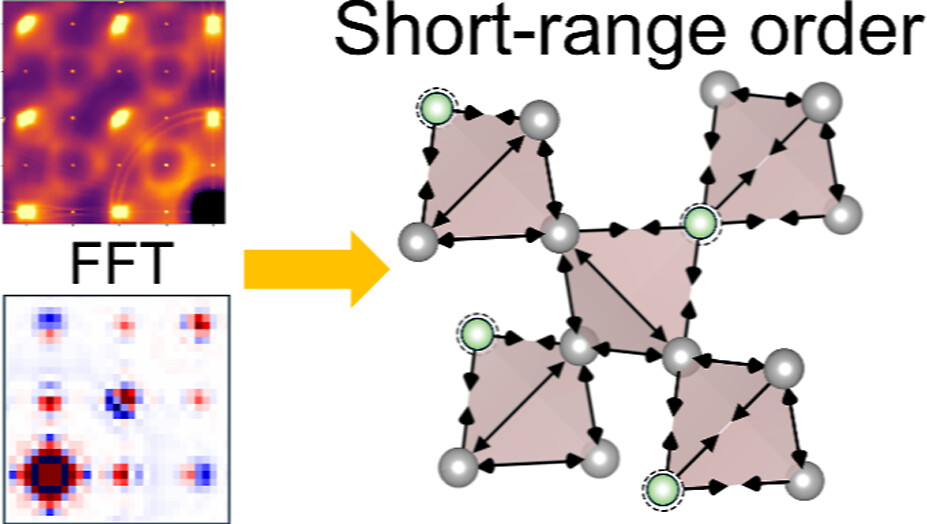

Solid-state superionic conductors are characterized by rich structural disorders. Though structural complexities are central to their functionalities, they often give rise to short-range order that eludes detection by conventional diffraction-based techniques and is thus overlooked in establishing precise structure–property relationships. In this work, we synthesized single crystals of a recently discovered lithium (Li) superionic conductor Li_16.2(1)In_9.00(2)Sn_1.10(1)O_23.8 (LISO) for in-depth characterizations of structural subtleties. LISO exhibits an unusual spinel-like phase with significant Li overstoichiometry and a face-sharing Li network. Single-crystal neutron diffraction confirms significant Li disorder, as manifested in Li site splitting and partial occupancy. More importantly, synchrotron diffuse scattering combined with 3D-ΔPDF analysis and Monte Carlo simulations reveal short-range order in the nonalkali framework that might contribute to the phase stability and ionic conductivity. This work showcases an example in which subtle local energetics can be directly visualized in structurally disordered ionic conductors.
